Steadypower 1600A Generator Cable Set (20 Cables)

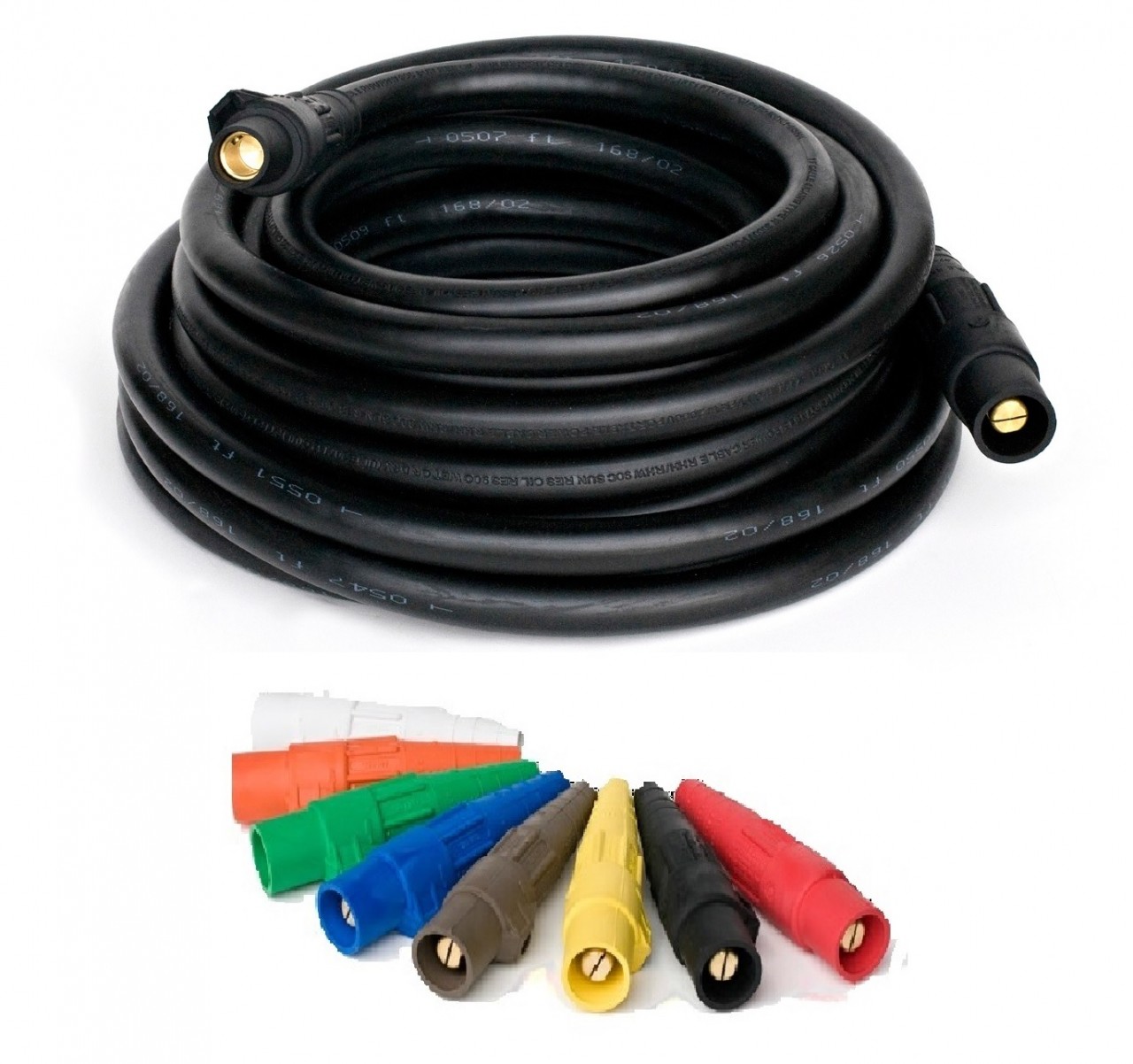

This Steadypower 1600A Generator Cable Set offers twenty Type W 4/0 black cables with color-coded male and female cams. Twenty pigtails for the generator and/or the equipment being run by the generator are available as options if needed. CABLE SET FEATURES & OPTIONS Number of Cables: Twenty (4 per phase, 4 neutral, 4 ground). Cable Length Options: 25ft or 50ft (for 100ft, order two 50ft sets). 208-240V Cam Colors: Red, Blue, and Black for each Phase, White for Neutral, Green for Ground. 480V Cam Colors: Orange, Yellow, and Brown for each Phase, White for Neutral, Green for Ground. Optional Generator-Side Pigtails: Twenty 6ft Type W 4/0 Cables with female cam and your choice of a bare end or 1/2″ lug end. Cams are color-coded to match the cams on the 25-50ft cables. Optional Equipment-Side Pigtails: Twenty 6ft Type W 4/0 Cables with male cam and your choice of a bare end or 1/2″ lug end. Cams are color-coded to match the cams on the 25-50ft cables. CABLE FEATURES UL Listed Portable Power Cable made from annealed No. 30 gauge bare copper stranding. Excellent Flexibility EPR/CPE single conductor portable power cable. Durable Jacket EPR (ethylene-propylene rubber) with black heavy duty CPE thermoset compound. Reinforced Strength featuring single faced rubber filled binder tape. Incredible Resistance to impact and abrasion. Quality Assured for your protection; water, flame, ozone, sunlight, grease, weather, and chemical resistant. Operating Temperatures range from -40°C to 90°C dry. UL, C(UL), and MSHA approved. CAM-CONNECTOR FEATURES 16 Series Taper Nose. Double Set Screw connection type. UL 1691.
